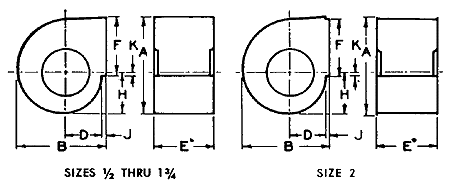

DFB HOUSING - DWDI
FAN SIZE
WEIGHT LBS.
A
B
D
E*
F*
H
J
K
1/2
11 9/16
11 1/4
4 7/16
7 1/2
7 1/8
4 7/8
1 1/4
7/16
6.25
5/8
14 1/16
13 1/2
5 7/16
9
8 5/8
6
1 1/4
9/16
9.25
3/4
16 7/8
15 5/8
5 7/8
10 5/8
12 3/8
7 3/16
1 9/16
2 11/16
13.5
7/8
19 5/8
18
6 3/4
13 3/4
14 7/16
8 3/8
1 11/16
3 3/16
18
1
22 1/2
20 1/2
7 13/16
13 3/4
16 7/16
9 5/8
1 11/16
3 9/16
21
1 1/8
25 5/16
22 13/16
8 11/16
17 1/2
18 5/8
10 13/16
1 13/16
4 1/8
30
1 1/4
28
25 1/4
9 11/16
17 1/2
20 1/2
12
1 13/16
4 1/2
32.75
1 3/8
30 5/16
26 11/16
9 7/8
19 1/2
22 5/8
12 3/4
1 7/8
5 1/16
37
1 1/2
33
28 15/16
10 13/16
21
24 5/8
13 7/8
1 7/8
5 1/2
46
1 3/4
38 3/8
33 1/2
12 7/16
24 1/4
28 3/4
16 1/16
2 3/16
6 7/16
63
2
45 15/16
40 7/8
16 1/4
27 5/8
32 3/4
19 13/16
2
7 5/16
105
